广东佳业新能源科技有限公司

咨询热线：18925858265

公司网站：jarye88.com

产品材质：A、C、F接头主体部位采用的优质铝合金制成，B、D部分采用的硅胶/丁腈橡胶制成（可定制耐候橡胶），E部分采用PA尼龙制成

产品认证：欧洲CE认证、欧洲ROHS认证、欧洲REACH认证

螺牙规格：公制螺纹M（Metric）系列，符合欧盟规范

螺纹长度：短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。安装螺纹长度可定制

产品特性：特殊夹紧爪与夹紧圈凹凸相扣之设计，配合迫紧头装配省时省力，夹紧电缆的范围大、抗拉力强、可防水、防尘、抗盐、耐盐酸、酒精、油脂及一般溶剂

防护等级：在规定的卡口范围内，并使用O型密封圈旋紧迫紧头，达到IP68-10巴压力

工作温度：静态：-40°C到100°C，短时间达120°C。动态：-20°C到80°C，短时间达100°C

使用方法：金属电缆防水接头是电缆的配套产品，接头可将电缆锁紧，另一端可接入设备箱体上，也可以根据螺纹接入进出口为内螺纹的电动设备上

更多选择：可根据客户实际需要定制，需要订购时欢迎来电咨询

Guangdong Jiaye New Energy Technology Co., Ltd

Consultation hotline: 18925858265

Company website: jarye88.com

Product Material: The main body of joints A, C, and F is made of high-quality aluminum alloy, parts B and D are made of silicone/nitrile rubber (weather resistant rubber can be customized), and part E is made of PA nylon

Product certification: European CE certification, European ROHS certification, European REACH certification

Screw thread specification: metric thread M (Metric) series, in compliance with EU regulations

Thread length: Short threads are suitable for opening holes in thin machine boards or equipment with internal threads, while long threads are suitable for joining thick machine boards. Customizable installation thread length

Product features: Special clamping claw and clamping ring with concave convex interlocking design, combined with tightening head assembly to save time and effort. The clamping range of the cable is large, with strong tensile resistance, waterproof, dustproof, salt resistant, resistant to hydrochloric acid, alcohol, grease, and general solvents

Protection level: Within the specified bayonet range, use an O-ring to tighten the tightening head and achieve a pressure of IP68-10 bar

Working temperature: Static: -40 ° C to 100 ° C, up to 120 ° C in a short period of time. Dynamic: -20 ° C to 80 ° C, reaching 100 ° C in a short period of time

Usage: Metal cable waterproof joint is a matching product of the cable. The joint can lock the cable tightly, and the other end can be connected to the equipment box. It can also be connected to electric equipment with internal threads at the inlet and outlet according to the thread

More options: Customization can be made according to the actual needs of customers. When ordering, please feel free to call for consultation

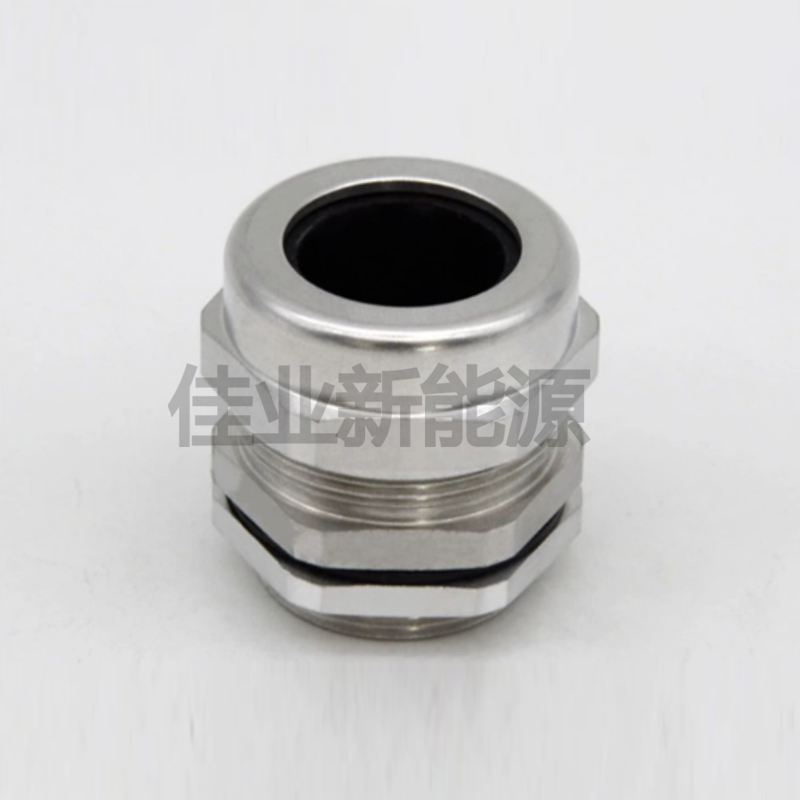

铝合金电缆防水接头（B型充电桩）

公制螺纹M系列
