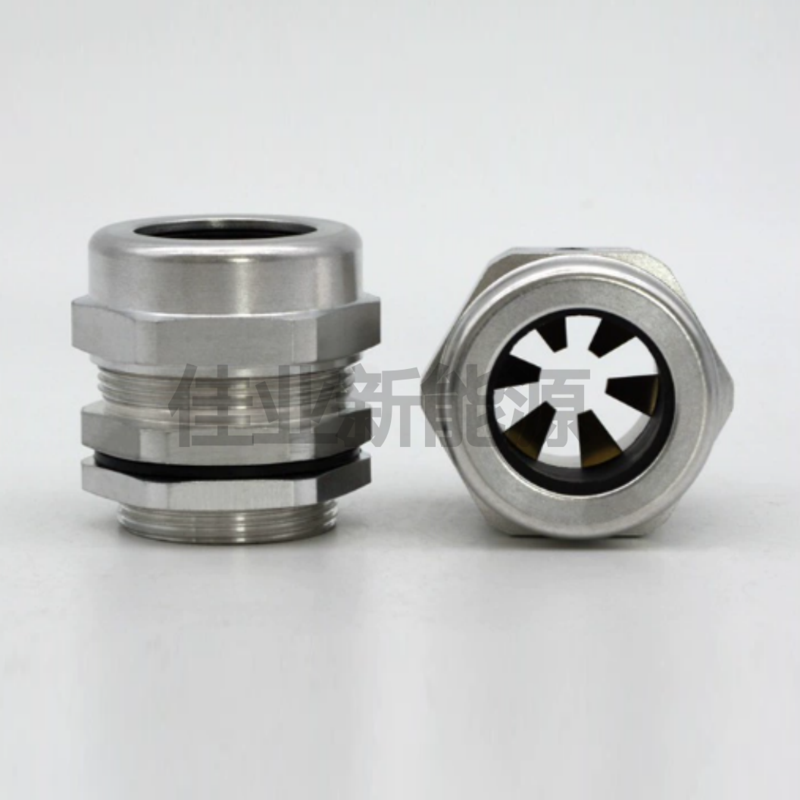

EMC电磁波屏蔽防水接头（垫片屏蔽）

广东佳业新能源科技有限公司

咨询热线：18925858265

公司网站：jarye88.com

产品材质：A、C、F部位采用黄铜镀镍制成，E采用尼龙塑料（PA）制成，B、D部位均采用丁腈橡胶（NBR）制成，G部位采用铜制弹片制成

产品认证：欧洲CE认证、欧洲ROHS认证、欧洲REACH认证

螺牙规格：公制牙M（Metric）系列，符合欧盟规范

螺纹长度：短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。螺纹长度可定制

防护等级：在规定的卡口范围内，并使用O型密封圈旋紧迫紧头，达到IP68

工作温度：静态：-40°C到100°C，短时间达120°C。动态：-20°C到80°C，短时间达100°C

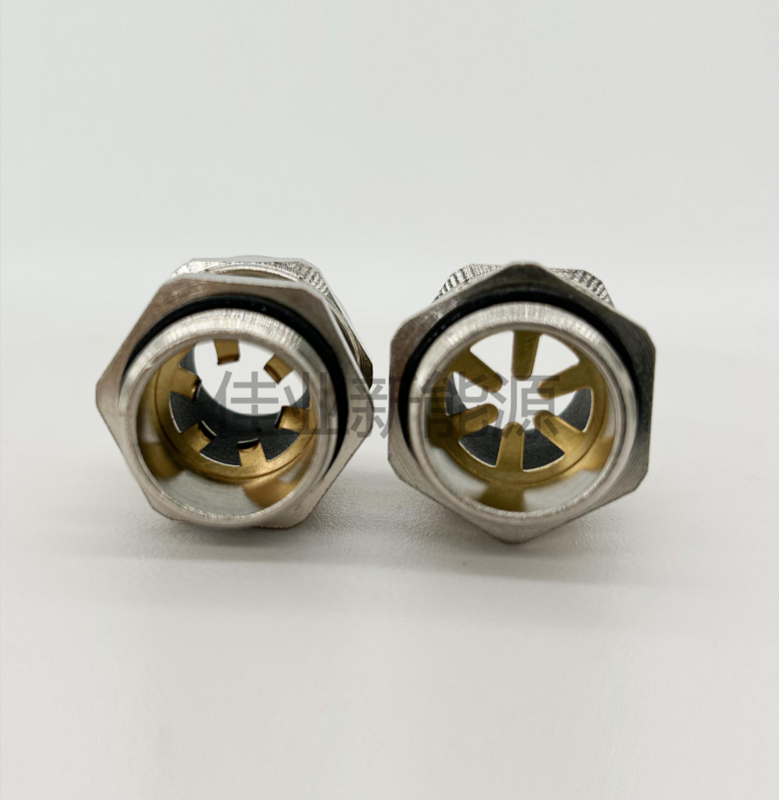

产品特性：本产品经特殊结构设计，将金属电缆防水接头当做是一个端体，当屏蔽电缆进入本防水接头时，可以利用接头内部附加的蝶形金属接触垫片与电缆线内的屏蔽编制网作接触，进而引导干扰的电磁波到接地点上（如金属电气箱体），使得电磁波干扰源得以接地疏散。本金属电缆防水接头能抗盐雾，耐酸碱，耐化学与抗腐蚀，精密美观的外观设计效果。固定抗拉力效果好兼具完美的气密性防水功能。本产品亦可搭配铠装电缆或者接地片达到EMC防电磁波的目的

更多选择：可根据客户实际需要，特别定制。需要订购时来电咨询

Guangdong Jiaye New Energy Technology Co., Ltd

Consultation hotline: 18925858265

Company website: jarye88.com

Product Material: Parts A, C, and F are made of brass nickel plating, parts E are made of nylon plastic (PA), parts B and D are all made of nitrile rubber (NBR), and parts G are made of copper shrapnel

Product certification: European CE certification, European ROHS certification, European REACH certification

Screw specifications: Metric series, in compliance with EU regulations

Thread length: Short threads are suitable for opening holes in thin machine boards or equipment with internal threads, while long threads are suitable for joining thick machine boards. The thread length can be customized

Protection level: Within the specified bayonet range, and use an O-ring to tighten the tightening head, achieving IP68

Working temperature: Static: -40 ° C to 100 ° C, up to 120 ° C in a short period of time. Dynamic: -20 ° C to 80 ° C, reaching 100 ° C in a short period of time

Product features: This product is designed with a special structure, treating the metal cable waterproof joint as an end body. When the shielded cable enters the waterproof joint, the butterfly shaped metal contact gasket added inside the joint can be used to make contact with the shielding mesh inside the cable, thereby guiding the interfering electromagnetic waves to the grounding point (such as the metal electrical box), allowing the electromagnetic wave interference source to be grounded and evacuated. This metal cable waterproof joint can withstand salt spray, acid and alkali, chemical and corrosion resistance, and has a precise and beautiful appearance design effect. Good fixed tensile resistance and perfect airtightness and waterproof function. This product can also be paired with armored cables or grounding pads to achieve EMC electromagnetic wave protection

More options: Customized according to the actual needs of customers. Call to inquire when ordering

EMC电磁波屏蔽防水接头（垫片屏蔽）

公制螺纹M系列
