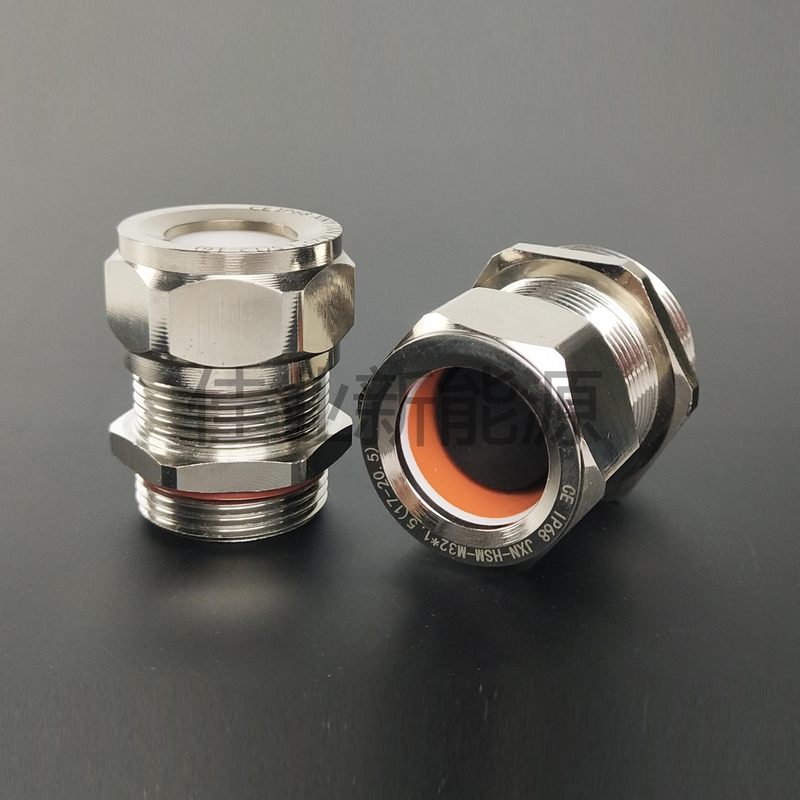

EMC电磁波屏蔽防水接头（弹簧屏蔽）

广东佳业新能源科技有限公司

咨询热线：18925858265

公司网站：jarye88.com

产品材质：B、F部位采用黄铜镀镍制成，C采用不锈钢制成，D、A耐老化硅橡胶制成（可定制特殊橡胶材料），E采用四氟乙烯制成

产品认证：欧洲CE认证、欧洲ROHS认证、欧洲REACH认证

螺牙规格：公制牙M（Metric）系列，符合欧盟规范

螺纹长度：短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。螺纹长度可定制

防护等级：在规定的卡口范围内，并使用O型密封圈旋紧迫紧头，达到IP68

工作温度：静态：-40°C到100°C，短时间达120°C。动态：-20°C到80°C，短时间达100°C

产品特性：1.采用四氟垫片，减少橡胶面和金属面的摩擦，提高使用年限

2.采用弹簧屏蔽屏蔽接触面大、安装效率高

3.内部橡胶采用硅胶，可满足产品在极寒的天气下正常运作

4.该款产品实现夹紧圈与电缆面接触密封，对电缆损伤小，可有效防止进入电机或控制器内部

   本产品经特殊设计，将金属电缆固定头当作是一个端体，当隔离线电缆进入本固定头时，可利用固定头内所附加的铜制屏蔽弹簧来与电缆线内的金属隔离编制网作接触，进而引导干扰的电磁波到接地线上，使电磁波干扰得以疏散。本款铜制电缆固定头全方位尺寸能充分地被应用到所有需防磁波的出线领域上，并且扎实的提供防水IP68与固定抗拉效果

Guangdong Jiaye New Energy Technology Co., Ltd

Consultation hotline: 18925858265

Company website: jarye88.com

Product materials: Parts B and F are made of brass nickel plating, parts C are made of stainless steel, parts D and A are made of aging resistant silicone rubber (special rubber materials can be customized), and parts E are made of tetrafluoroethylene

Product certification: European CE certification, European ROHS certification, European REACH certification

Screw specifications: Metric series, in compliance with EU regulations

Thread length: Short threads are suitable for opening holes in thin machine boards or equipment with internal threads, while long threads are suitable for joining thick machine boards. The thread length can be customized

Protection level: Within the specified bayonet range, and use an O-ring to tighten the tightening head, achieving IP68

Working temperature: Static: -40 ° C to 100 ° C, up to 120 ° C in a short period of time. Dynamic: -20 ° C to 80 ° C, reaching 100 ° C in a short period of time

Product features: 1. Adopting PTFE gaskets to reduce friction between rubber and metal surfaces and increase service life

2. Adopting spring shielding to shield large contact surfaces and achieve high installation efficiency

3. The internal rubber is made of silicone, which can meet the normal operation of the product in extremely cold weather

4. This product achieves contact sealing between the clamping ring and the cable surface, which minimizes cable damage and effectively prevents entry into the motor or controller interior

    This product is specially designed to treat the metal cable fixing head as an end body. When the isolation cable enters this fixing head, the copper shielding spring attached to the fixing head can be used to make contact with the metal isolation mesh inside the cable, thereby guiding the interfering electromagnetic waves to the grounding wire and allowing the electromagnetic wave interference to be dispersed. This copper cable fixing head can be fully applied to all output fields that require anti magnetic waves in all dimensions, and provides a solid waterproof IP68 and fixed tensile effect

EMC电磁波屏蔽防水接头（弹簧屏蔽）

公制螺纹M系列
