铝合金防水透气阀

广东佳业新能源科技有限公司

咨询热线：18925858265

公司网站：jarye88.com

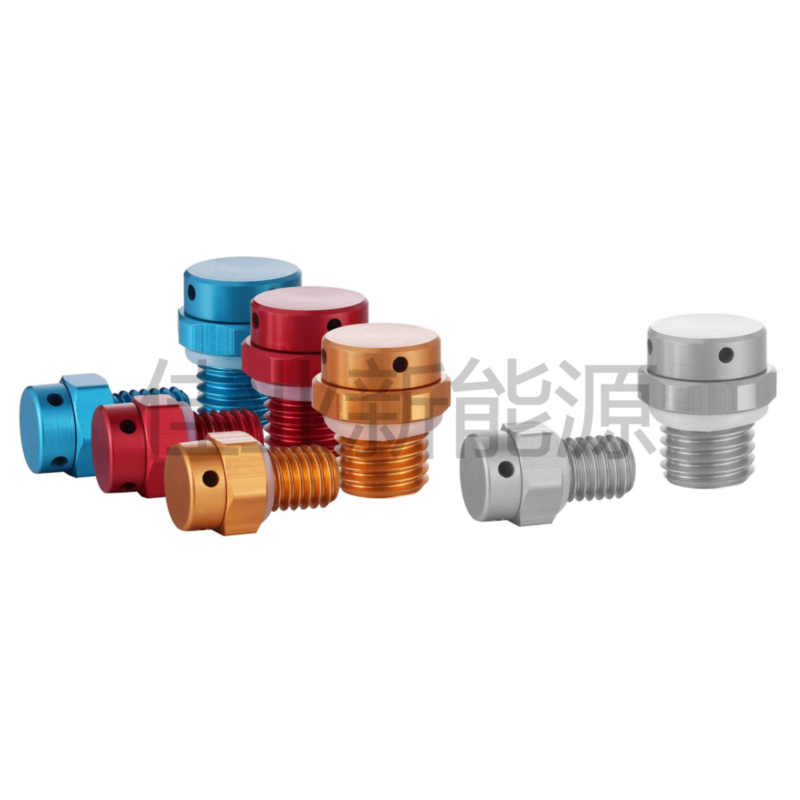

产品详细说明：又名“螺纹型呼吸器”，本产品膜材全部采用进口原料，外壳采用铝合金制造，膜料与外壳通过独有工艺：铆压一体成型加工而成，具有结构简单性能稳定，安装使用时间长，防水透气性能高等特征

主要特性

1.防水防尘等级IP67(可定制IP68)；

2.接触液体后迅速恢复透气；

3.高透气量能通过平衡压力降低机壳密封条的应用力；

4.憎水、憎油结构的防护薄膜嵌入在塑胶壳体内，具有惰性、单一性、抗化学性以及抗紫外线的特点；

5.细微多孔结构的滤网甚至能阻止盐粒晶体；

6.具有潮气和水气可透性；

7.螺纹式外壳并配有高效、环保的密封环。（有特殊需要可定制密封环）

主要特性

1.保护敏感的电子、电器产品；

2.降低罩壳设计和制造成本；

3.在极端环境下使用，可使设备延长寿命，且无故障免维护；

4.极大地降低由于各种腐蚀而引起的电子、电感产品故障；

5.极大地降低结雾和结露；

6.通用件且安装简易（非标产品可定制）；

7.能让密封箱体有着更好的散热、解压功效；

应用领域

户外照明灯具，汽车电子，通信设备，太阳能光伏等行业

Guangdong Jiaye New Energy Technology Co., Ltd

Consultation hotline: 18925858265

Company website: jarye88.com

Product Description: Also known as "threaded respirator", this product uses imported raw materials for all film materials, and the outer shell is made of environmentally friendly brass nickel plating/aluminum alloy/stainless steel. The film material and the outer shell are processed through a unique process of riveting and pressing, which has the characteristics of simple structure, stable performance, long installation and use time, high waterproof and breathable performance, etc

Main features

1. Waterproof and dustproof level IP67 (customizable IP68);

2. Quickly restore breathability after contact with liquid;

3. High air permeability can reduce the application force of the casing sealing strip by balancing pressure;

4. The protective film with hydrophobic and hydrophobic structures is embedded in the plastic shell, which has the characteristics of inertness, singularity, chemical resistance, and UV resistance;

5. Fine porous filters can even prevent salt crystal growth;

6. Has moisture and water permeability;

7. The threaded shell is equipped with an efficient and environmentally friendly sealing ring. (Customized sealing rings are available for special needs)

Main features

1. Protect sensitive electronic and electrical products;

2. Reduce the design and manufacturing costs of the casing;

3. When used in extreme environments, it can extend the lifespan of the equipment and is fault free and maintenance free;

4. Greatly reduce electronic and inductive product failures caused by various types of corrosion;

5. Greatly reduce fogging and condensation;

6. Universal components and easy installation (non-standard products can be customized);

7. It can provide better heat dissipation and pressure relief for the sealed box body;

application area

Outdoor lighting fixtures, automotive electronics, communication equipment, solar photovoltaic and other industries
