C型金属电缆防水接头

广东佳业新能源科技有限公司

咨询热线：18925858265

公司网站：jarye88.com

产品材质：A、C、E部位采用黄铜镀镍/不锈钢制成，B、D部分采用的硅胶制成

产品认证：欧洲CE认证、欧洲ROHS认证、欧洲REACH认证

工作温度：静态：-30°C到200°C，短时间达240°C

螺牙规格：公制螺纹M（Metric）系列，符合欧盟规范

螺纹长度：短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。安装螺纹长度可定制

产品特性：特殊夹紧爪与夹紧圈凹凸相扣之设计，配合迫紧头装配省时省力，适合水底产品使用（不适合油脂环境）

防护等级：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP68-10巴压力

工作温度：-40°C到100°C

使用方法：金属电缆防水接头是电缆的配套产品，接头可将电缆锁紧，另一端可接入设备箱体上，也可以根据螺纹接入进出口为内螺纹的电动设备上

更多选择：可根据客户实际需要，特别定制。需要订购时欢迎来电咨询

Guangdong Jiaye New Energy Technology Co., Ltd

Consultation hotline: 18925858265

Company website: jarye88.com

Product Material: Parts A, C, and E are made of brass nickel plated/stainless steel, while parts B and D are made of silicone

Product certification: European CE certification, European ROHS certification, European REACH certification

Working temperature: Static: -30 ° C to 200 ° C, up to 240 ° C in a short period of time

Screw thread specification: metric thread M (Metric) series, in compliance with EU regulations

Thread length: Short threads are suitable for opening holes in thin machine boards or equipment with internal threads, while long threads are suitable for joining thick machine boards. Customizable installation thread length

Product features: The special clamping claw and clamping ring are designed with concave and convex buckles, and assembled with a tightening head to save time and effort. It is suitable for use in underwater products (not suitable for oily environments)

Protection level: Within the specified bayonet range, and use sealing rings to tighten the tightening head, achieving a pressure of IP68-10 bar

Working temperature: -40 ° C to 100 ° C

Usage: Metal cable waterproof joint is a matching product of the cable. The joint can lock the cable tightly, and the other end can be connected to the equipment box. It can also be connected to electric equipment with internal threads at the inlet and outlet according to the thread

More options: Customized according to the actual needs of customers. When you need to place an order, please feel free to inquire by phone

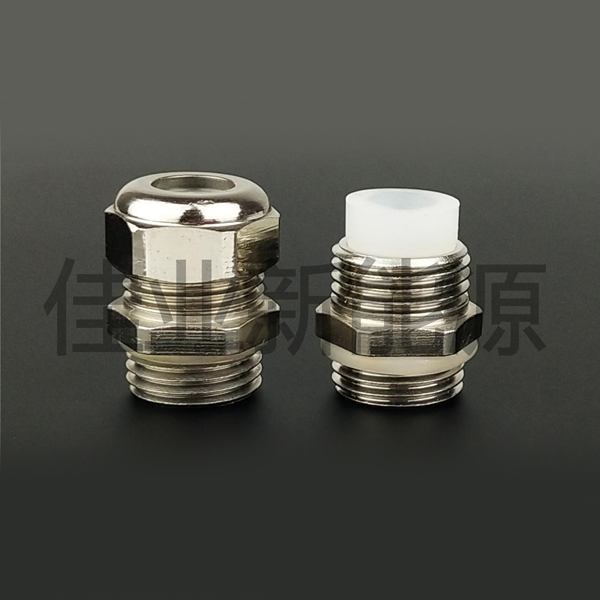

金属防水C型接头铜镀镍防水接头

公制螺纹M系列
