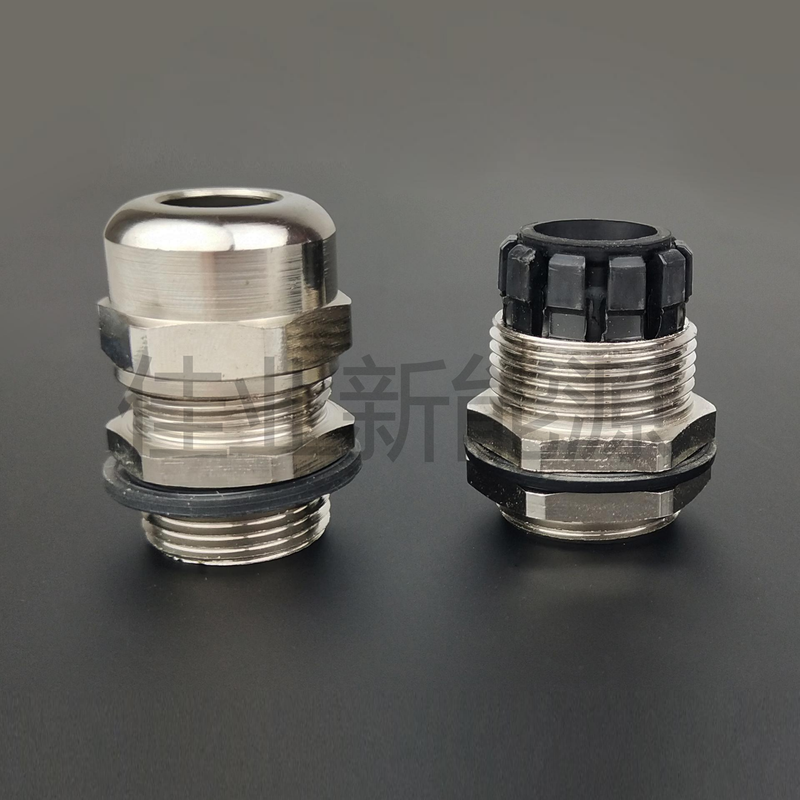

加厚A型金属电缆防水接头

广东佳业新能源科技有限公司

咨询热线：18925858265

公司网站：jarye88.com

产品材质：接头A、C、F部位采用黄铜镀镍/不锈钢/铝合金制成，E部分采用UL认可之尼龙PA66制成（防火等级UL94V-2），BD部分采用EPDM耐候橡胶制成。（可定制耐寒、耐高温橡胶；耐高酸碱、耐化学与抗腐蚀橡胶）

螺牙规格：英制牙G（PF）系列，符合欧盟规范

产品特性：特殊夹紧爪与夹紧圈之设计，夹紧电缆的范围大、抗拉力强、可防水、防尘、抗盐、耐盐酸、酒精、油脂及一般溶剂

工作温度：静态：-40°C到100°C，短时间达120°C。(可定制-60°C至220°C)

更多选择：可根据客户实际需要，特别定制。需要订购时欢迎来电咨询

Guangdong Jiaye New Energy Technology Co., Ltd

Consultation hotline: 18925858265

Company website: jarye88.com

Product Material: The joints A, C, and F are made of brass nickel plated/stainless steel/aluminum alloy, the E part is made of UL approved nylon PA66 (fire rating UL94V-2), and the BD part is made of EPDM weather resistant rubber. (Customizable cold and high temperature resistant rubber; high acid and alkali resistance, chemical resistance, and corrosion resistance rubber)

Screw tooth specifications: British tooth G (PF) series, in compliance with EU regulations

Product features: The design of special clamping claws and clamping rings allows for a wide range of cable clamping, strong tensile strength, waterproof, dustproof, salt resistant, resistant to hydrochloric acid, alcohol, grease, and general solvents

Working temperature: Static: -40 ° C to 100 ° C, up to 120 ° C in a short period of time. (Customizable from -60 ° C to 220 ° C)

More options: Customized according to the actual needs of customers. When you need to place an order, please feel free to inquire by phone

加厚A型金属电缆防水接头

公制螺纹M系列
